CNC milling is a crucial process in modern manufacturing. It allows for precisely shaping materials such as metal, plastic, and wood. The 3-axis vs 4-axis mill machines are widely used for various applications among the many types of CNC mills. Both offer unique advantages depending on the complexity of the part being machined. However, when it comes to cost, there is often a debate over whether a 3-axis CNC mill is cheaper than a 4-axis CNC mill. This unique article explores the differences between these options and helps determine which is more economical for different machining needs.
Key Factors to Affect CNC Mill Service
Several factors affect the cost of the different types of CNC mill services. Here are some of the key factors affecting their cost:
Complexity of the Parts
The complexity of the parts being machined plays a significant role in determining whether a 3-axis or 4-axis CNC mill is required
- 3-Axis CNC Mill

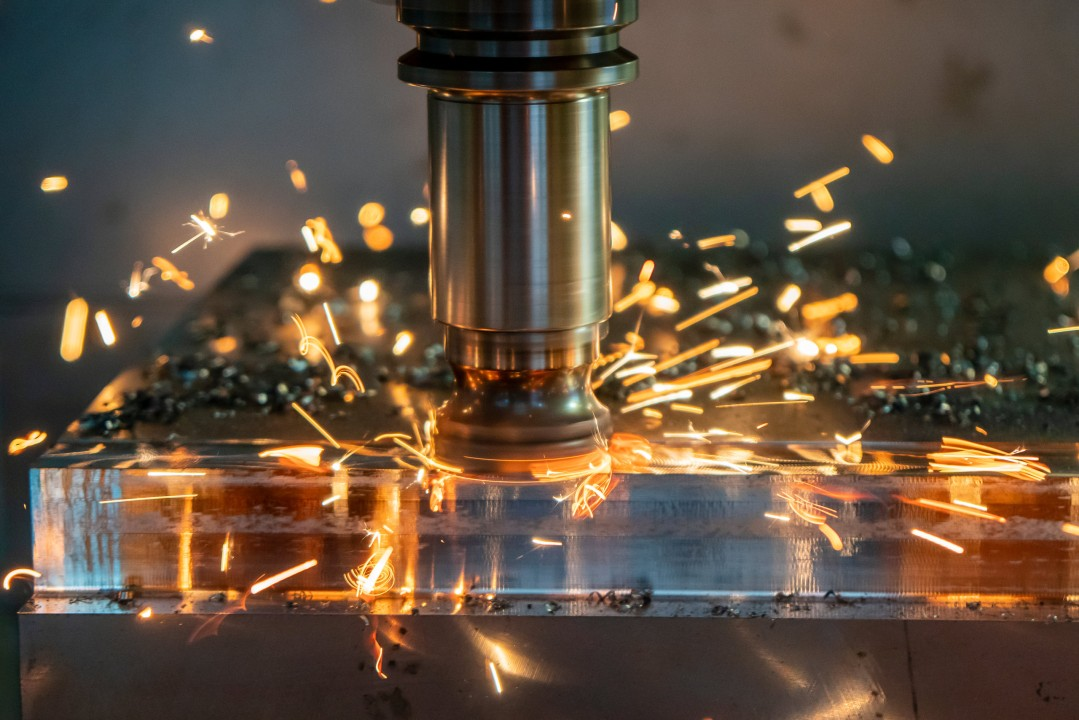

A 3-axis CNC mill moves the cutting tool along the X, Y, and Z axes. It is ideal for parts that require simple machining, such as drilling, milling, or tapping in a single plane. For jobs with basic geometries and no need for intricate cuts or multi-sided machining, a 3-axis mill is the most economical choice.
It performs well when working on parts that can be processed in one or two setups. However, multiple setups may be necessary for complex designs, increasing the machining time and cost.
- 4-Axis CNC Mill

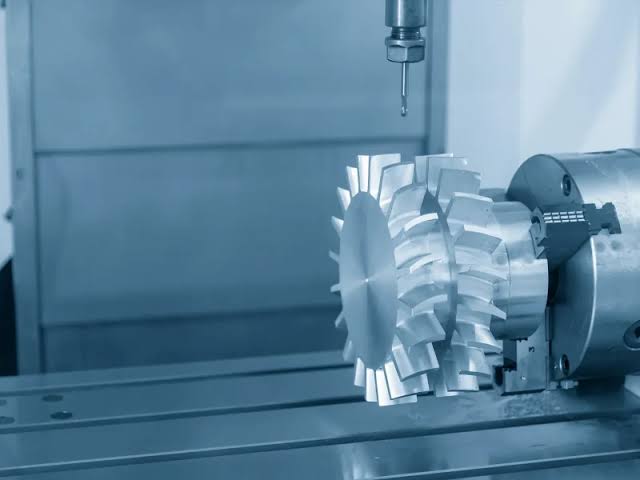

In contrast, a 4-axis CNC mill adds a rotary movement along the A-axis, which allows for machining on multiple sides of a part without needing to reposition it manually. This makes the 4-axis mill better suited for complex parts with features spanning different planes. It reduces the number of setups required, saving time and improving precision.
While the upfront cost of using a 4-axis machine may be higher, it becomes more cost-effective for jobs requiring complex geometries or more intricate details. A 3-axis machine would need extensive manual intervention to maintain precision for such parts.
Material Type
Different materials like metals, plastics, or composites, affect CNC milling costs.
- 3-Axis CNC Mill
A 3-axis CNC mill is commonly used for machining softer materials such as plastics, aluminum, or softer metals like copper. The simpler operations and lower degree of freedom make it suitable for materials that do not require highly specialized tooling or cutting strategies. The lower cost of operating a 3-axis mill is reflected in its ability to handle basic materials efficiently and produce parts with adequate precision for less demanding applications.
However, when harder materials are involved, the limitations of a 3-axis mill become apparent, as multiple setups and slower machining speeds may increase costs and production time.
- 4-Axis CNC Mill
On the other hand, a 4-axis CNC mill is more equipped to handle harder materials such as stainless steel, titanium, and high-performance alloys. The added rotational axis allows for more dynamic cutting paths, which are essential when machining materials that are difficult to shape. In these cases, a 4-axis mill can achieve more complex cuts in a single setup, reducing the wear and tear on cutting tools and increasing efficiency.
While the initial cost of using a 4-axis machine is higher, it can be more cost-effective for materials that require more precise and multi-angled machining, leading to reduced tool damage and faster production.
Setup Time
The time required to set up the machine for a particular job directly impacts service costs.
- 3-Axis CNC Mill
A 3-axis CNC mill generally has a simpler setup process, making preparing for most machining tasks quicker. Since it only moves in three directions (X, Y, and Z), operators can complete the setup in fewer steps, especially for straightforward parts. This simplicity often reduces the initial cost of the operation, especially for smaller jobs or less complex parts.
However, when machining requires accessing multiple sides of a part, the operator may need to manually reposition the material between setups, increasing downtime and labor costs.
- 4-Axis CNC Mill
In contrast, a 4-axis CNC mill introduces an additional degree of movement, allowing the machine to rotate the part and access multiple surfaces without manual repositioning. This added flexibility reduces the number of setups needed, making the process more efficient for complex parts. Although the initial setup time might be slightly longer due to the additional axis, the overall reduction in repositioning and re-fixturing often results in time savings for multi-sided parts.
However, the more complex setup process and machine capabilities usually lead to higher upfront costs than 3-axis machining.
Precision and Tolerances
The precision and tight tolerances needed for a part influence the choice between a 3-axis and 4-axis CNC mill.
- 3-Axis CNC Mill
3-axis CNC mills are well-suited for parts that do not require extremely tight tolerances or highly intricate features. The limitation of moving only along three axes restricts the ability to create certain angles or curved surfaces in a single operation, meaning parts may need multiple setups. While this can still produce accurate results for basic shapes and profiles, it becomes more difficult to maintain precision for parts with complex geometries.
As a result, the tolerances achievable on a 3-axis machine may be less accurate for parts with complex features compared to a 4-axis mill.
- 4-Axis CNC Mill
A 4-axis CNC mill offers enhanced precision by rotating the workpiece and accessing it from multiple angles without repositioning. This allows for continuous machining of complex shapes and features in a single setup, which reduces errors introduced by manual handling. For parts requiring tight tolerances and intricate details, a 4-axis mill is superior because it provides better control over the cutting path. The added rotational movement allows smoother transitions between surfaces, resulting in higher precision and better dimensional accuracy.
Though the precision is higher, it typically comes at a more significant cost than using a 3-axis mill.
Production Volume
The volume of parts produced can also affect the choice of CNC mill and its cost.
- 3-Axis CNC Mill
A 3-axis CNC mill is often more economical for low-volume production or one-off parts due to its lower setup and operation costs. It is ideal for simpler parts that can be machined quickly in fewer steps and can efficiently handle small batches without the need for extensive programming or setup adjustments. However, a 3-axis mill may require frequent repositioning and additional labor if high-volume production involves parts with multiple complex features. This can slow down the production process and increase costs over time.
- 4-Axis CNC Mill
A 4-axis CNC mill can offer significant time savings for the high-volume production of complex parts. Its ability to machine multiple sides of a part in a single setup decrease the need for manual intervention. This speeds up the production process. This makes it more efficient for mass production, where consistency and precision are critical. While the upfront cost of using a 4-axis mill is higher, the long-term benefits of reducing cycle time, setup changes, and part handling often make it more cost-effective for large-scale projects with complex geometries.
Contrast Table
Below is a table showing the differences between the factors that affect the cost of 3 3-axis CNC mill and a 4 axis CNC mill:
| Factors | 3-Axis CNC Mill | 4-Axis CNC Mill |
| Complexity of Parts | Suitable for simple parts with basic geometries.. | Ideal for complex parts with features on multiple planes. |
| Material Type | Best for softer materials. Multiple setups may increase cost for hard materials. | Handles tougher materials more efficiently with dynamic cutting paths. |
| Setup Time | Quicker initial setup for simple jobs. Requires manual repositioning for multi-sided parts. | Slightly longer setup due to additional axis, but fewer re-fixturing needs for multi-sided parts. |
| Precision & Tolerances | Adequate for basic shapes and less strict tolerances. | Higher precision and better control for complex shapes, maintaining tight tolerances across multiple angles. |
| Production Volume | More economical for low-volume, simple part production. | More efficient for high-volume production of complex parts. |
| Cost | Generally cheaper for basic, low-complexity parts. | Higher initial cost but potentially more cost-effective for complex, high-precision, or large-batch projects. |
Conclusion
Cost plays a major role when choosing between a 3-axis and a 4-axis CNC mill. However, it is important to consider the specific needs of the project. A 3-axis CNC mill is generally more affordable and ideally suited for simple parts, basic materials, and low-volume production. However, as the part’s complexity increases, or if higher precision and efficiency are required, the benefits of a 4-axis CNC mill become more apparent.
While the upfront cost of a 4-axis mill may be higher, it often proves more economical for complex projects or high-volume production due to reduced setup time, increased precision, and better handling of rigid materials. Ultimately, the decision should be based on the complexity, material, and production volume of the machined parts.
